Overview

The BCH Encoder/Decoder IP Core is a synthesizable VHDL design that implements a complete Bose–Chaudhuri–Hocquenghem (BCH) Error Correction Code (ECC) engine for raw NAND flash memories. It is designed for integration into FPGA/SoC-based NAND flash controllers and targets ONFI compliant devices.

Features

• 512-byte datablock length (sector)
• Error correction capability: t=12
• Galois Field: GF(214)
• ECC redundancy: t.m = 168 bits → 21 bytes per 512-byte sector
• Novel decoder architecture via Reformulated inversionless Berlekamp-Massey (RiBM)
• Low resource footprint and low LUT utilization (< 8000 LUT for logic)
• Industry-standard AXI4-Stream interface
• Corrected error count and uncorrectable status reported via status ports
• Seamless integration with ANADOLOGIC’s ONFI NAND Flash Controller IPs
• Parametric design via VHDL package parameters
• Up to 1.6 Gbps throughput

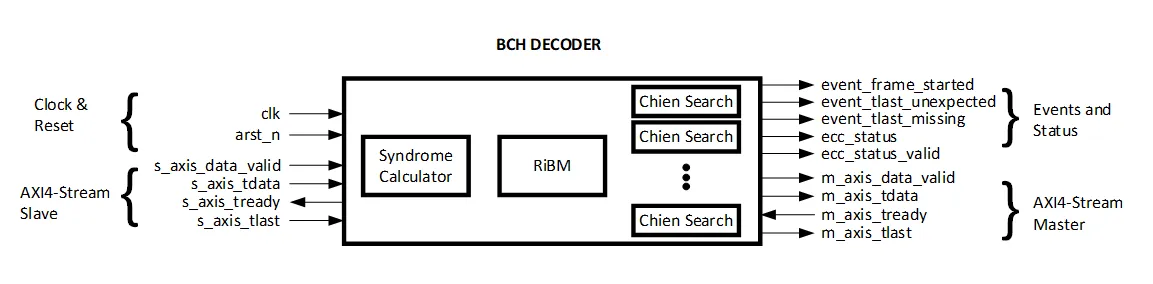

Architecture

Deliverables

• Detailed Integration Guide: clock/reset requirements, interface timing, configuration & regeneration flow for BCH parameters, and example integration projects
• Verification & Validation Package: test summary, detailed simulation results (including error injection up to t), and hardware validation evidence (logs/screenshots & live online demo per request)
